Steve Conner

An independent DRSSTC line from 2005: the CD4046 PLL driver, a tuning trick that survives ground strikes, and the pulse-skip idea for ramping.

What changed because of them

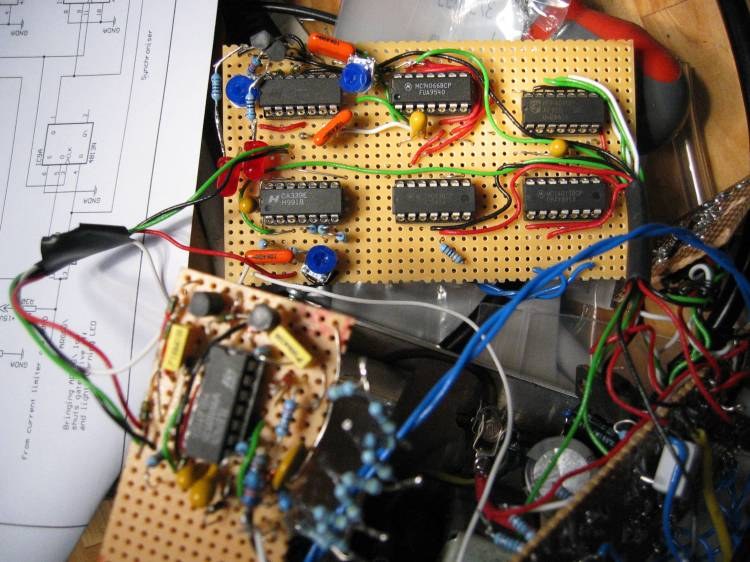

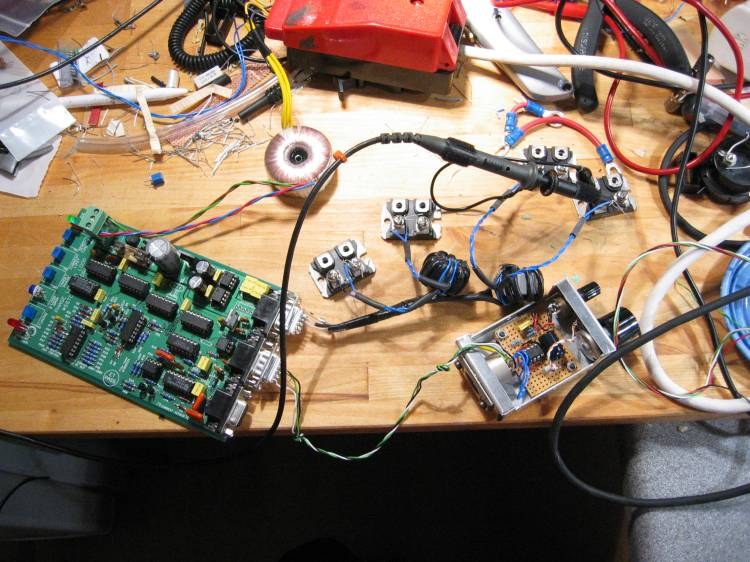

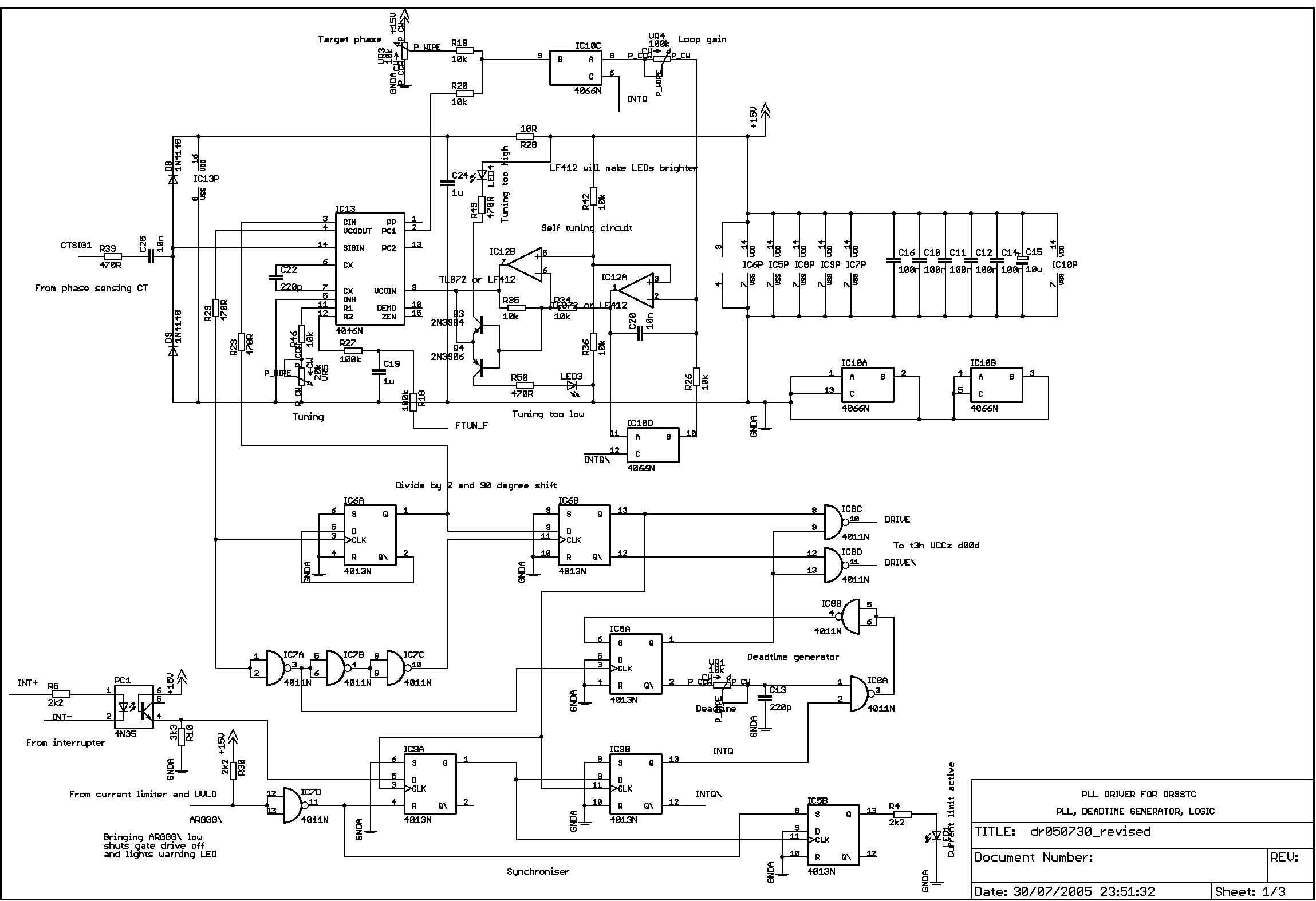

Conner is named next to Ward and Terry Fritz as a DRSSTC co-inventor on loneoceans' credits page, and his line is not a Ward derivative. His site documents a from-scratch PLL driver dated July 2005: CD4046 phase lock, a self-tuning circuit that nudges the loop-gain pot on its own, an opto-isolated interrupter input and a dead-time generator, on a professionally drawn sheet with board files and a BOM for download.

The part that mattered beyond the PLL itself was a tuning technique only possible with this driver, which stops primary current running away on a ground strike. His coil Mjöllnir ran at five times its designed power without losing an IGBT. Odin The All-Fragger followed with a Rev B driver and a brick-driver add-on. Uzzors2k's PLL SSTC of 2007 is built from his published schematic and says so in the title block.

Much later he proposed a third way to ramp a QCW without a buck or a phase-shifted bridge: let the current ring up past a setpoint, turn every switch off at once and let the tank regenerate into the bus, so the envelope falls as fast as it rose. Davekni tried it in practice on a UD3.

Their boards

Builds and boards on the tree

Sources

Written from what Steve Conner published, by one person, so it can be wrong in places. The page is meant to become editable, wiki-style, by profiles above a trust level. Until then, corrections go to the forum, and anything Steve Conner asks to change or remove is changed the same day.
