[ legends · DRSSTC ]

Daniel Marks

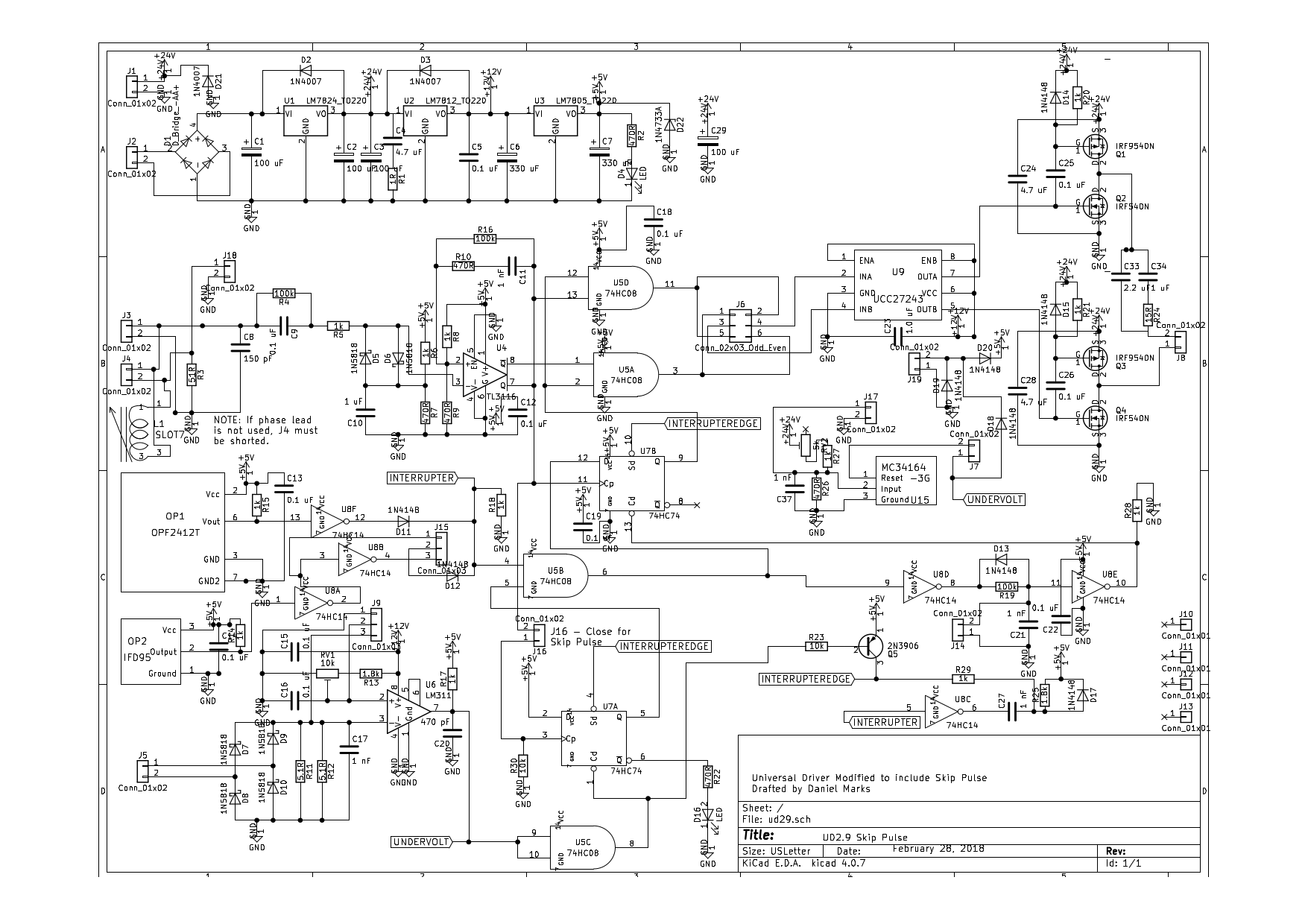

UD2.9: the UD2.7C rebuilt through-hole with a pulse-skip jumper, released under CC-BY-SA so anyone who would rather solder than reflow can build it.

What changed because of them

Marks holds a PhD in Electrical Engineering from UIUC and publishes in computational imaging and radar. On GitHub he keeps more than seventy open-hardware projects: a VNA, an antenna tuner, a Nixie clock, a Z80 computer, and among them a whole DRSSTC PCB pack.

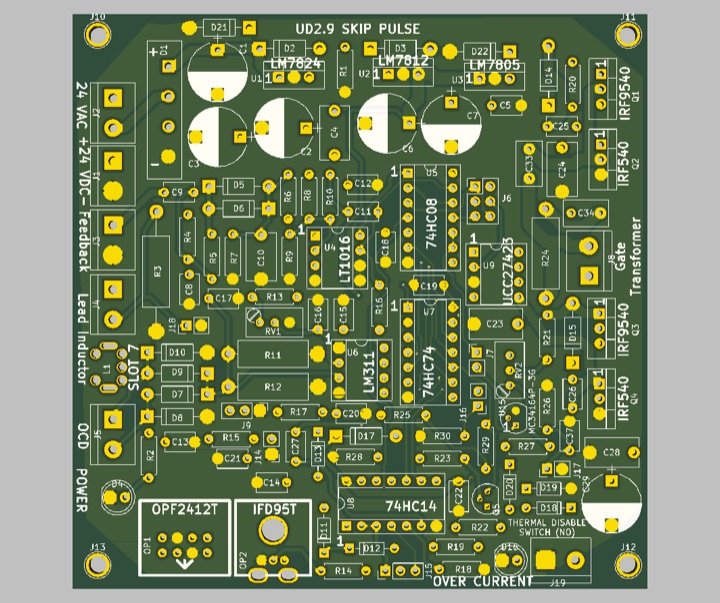

UD2.9, released on 15 May 2018, is loneoceans' UD2.7C rebuilt through-hole, easier to hand-solder and easier to source, with a pulse-skip jumper added. It came six weeks after UD3 and is a different branch entirely. Eight years later Mads Barnkob built Kaizer DRSSTC VII on it unmodified, and WaskaLabs continued the through-hole line as UD29X.

Their boards

Builds and boards on the tree

Sources

Written from what Daniel Marks published, by one person, so it can be wrong in places. The page is meant to become editable, wiki-style, by profiles above a trust level. Until then, corrections go to the forum, and anything Daniel Marks asks to change or remove is changed the same day.
